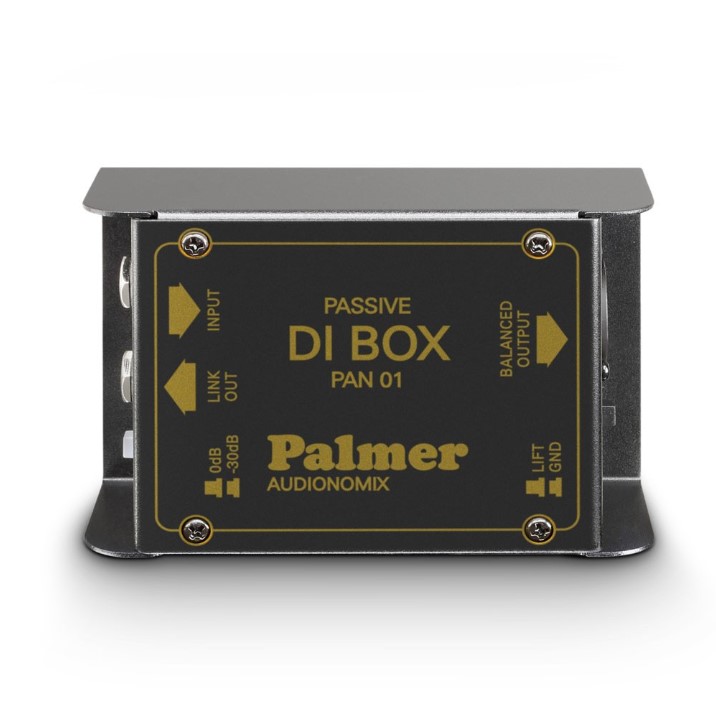

Passive DI-Box equipped with jack input with parallel output for loop through connection of the signal. Transformer balanced XLR output. Switchable input sensitivity. Line and speaker signal levels can be processed.
Generality
Product type: DI Box
Type: Passive
Number of channels: 1
Number of entrances: 1

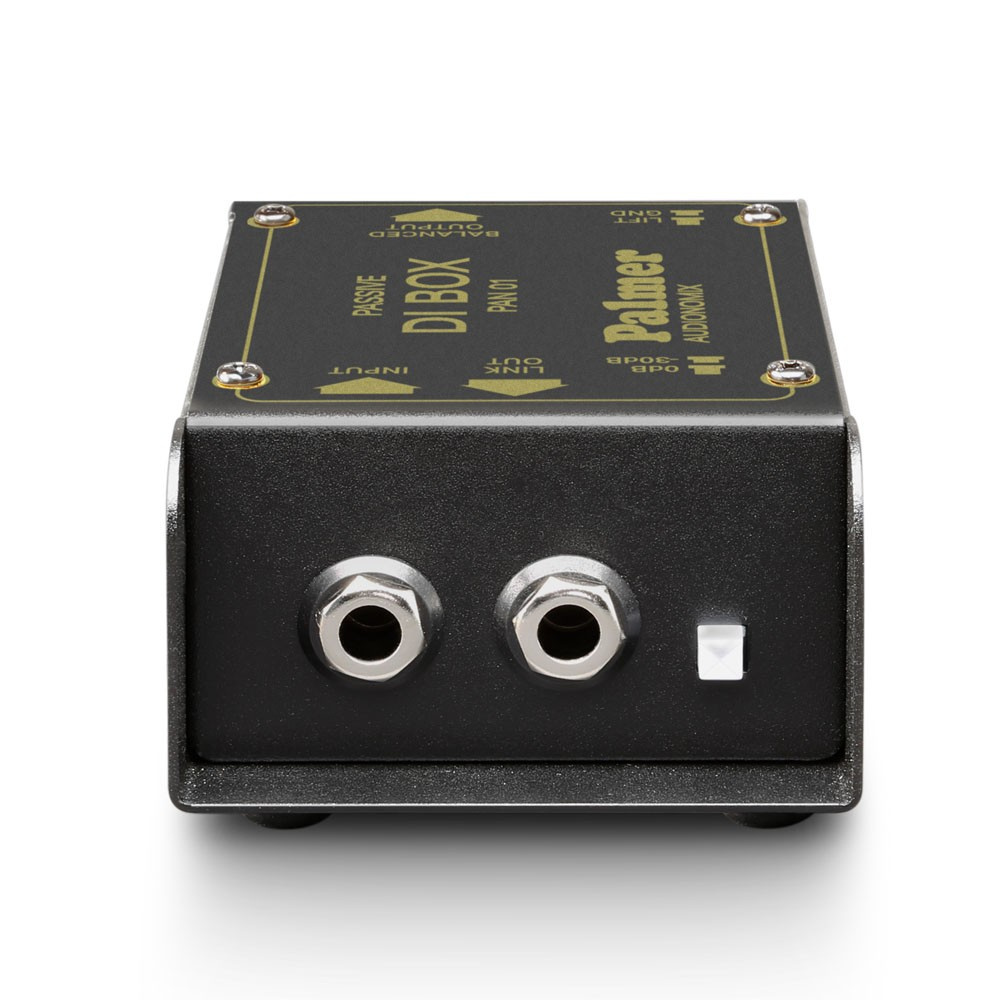

Input connections: 6.3 mm jack
Max input level: + 54 dBu
Input Impedance: (@ 60Hz) 60k Ohm
Input attenuation: 0 / -30 dB
Number of outputs: 1
Number of THRU outputs per channel: 1

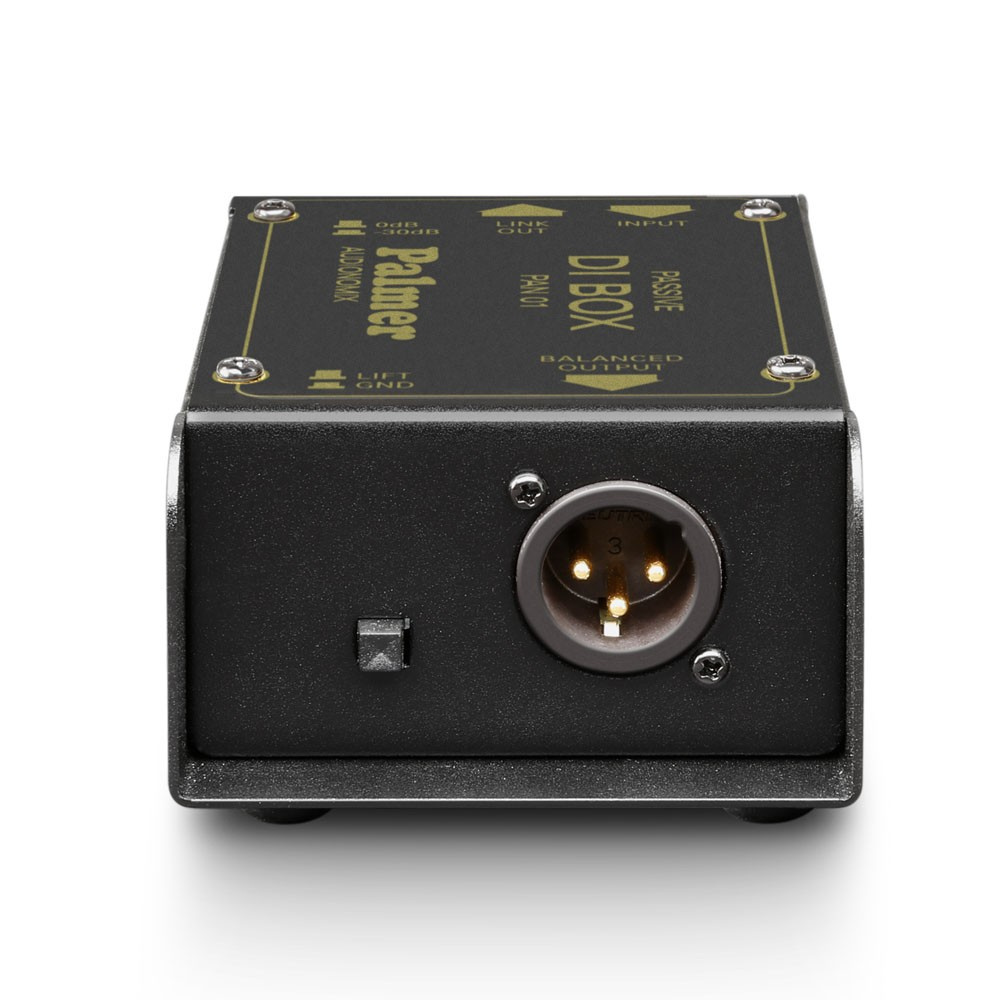

Output Connections: 6.3mm Jack, XLR
Max output level: + 4 dBu
Output Impedance: 600 Ohm
Frequency Response: 20 - 20000Hz
Transformer balanced: Yes
Transmission ratio (Ratio): 10: 1
Control elements: Attenuator, Ground-Lift
Case material: Steel sheet
Case surface: Black powder coating
Width: 110 mm
Depth: 73 mm
Height: 42 mm
Weight: 0.34 kg
