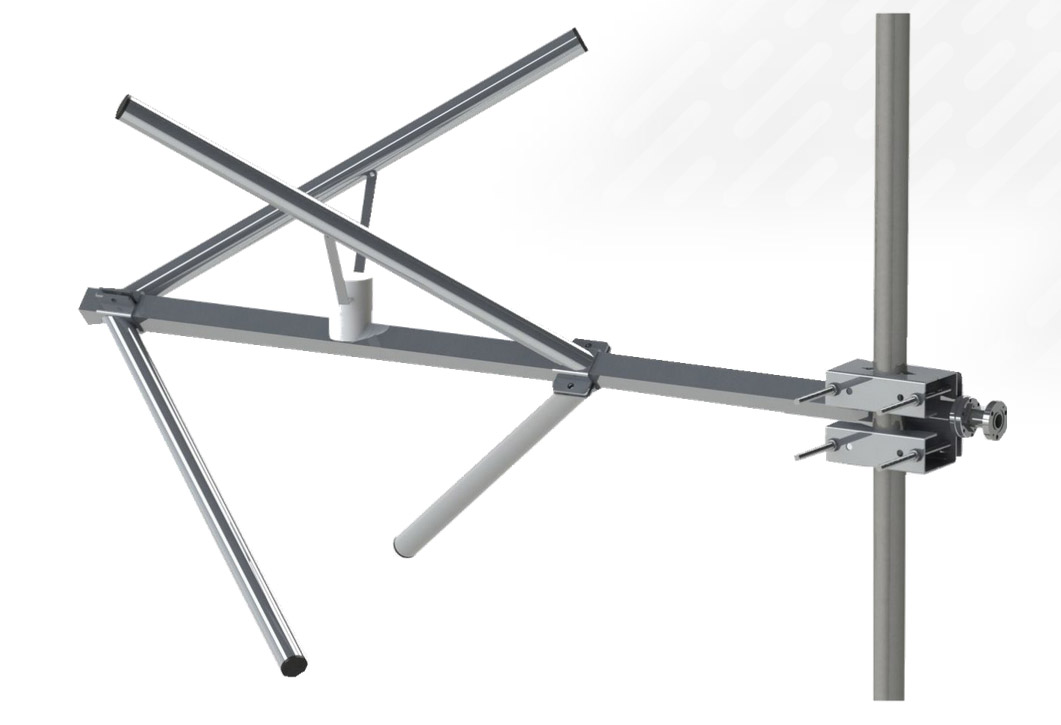

ACP1 - RVR

ELECTRICAL DATA
Frequency range : 87.5÷108 MHz
Impedance : 50 Ohm
Connectors : N or 7/16” female or 7/8” EIA
Max Power : 800W (N) – 2KW (7/16”) 3KW (7/8” EIA)
VSWR : 1.4:1
Polarization : Circular
Gain : Refer to table
Pattern :
° Omni directional ±1.5 dB in free space
° Omni directional ±3 dB with 100mm dia. Pole
Lightning protection : All metal parts DC grounded

MECHANICAL DATA
Dimensions : 1560 x 1150 x 1150 mm
Weight : 13 kg
Wind surface : 0.19 m2 (side) 0.13 m2 (front)
Wind load : 31.1 kg (side – wind speed at 160 km/h)
Max wind velocity : 220 km/h.
Materials External parts : Stainless Steel
Internal parts : alluminium treated
Mounting : With special pipe clamps 50¸110 mm dia.
