RVR Plug-In FM Transmitter 5500W - Mono - Stereo - Multiplex. One of the most popular Plug-In transmitters in the world. It represents the state-of-the-art technology in full compliance with EC, FCC and CCIR standards. Designed for 24/7 non-stop operation thanks to its great realiability and Hot-pluggable power amplifier modules.

Composed by:
1 x TEX100LCD/S
2 x PJ2500 LCD
1 x HC2/5, 27 HE.

° Tunable over entire FM band (87.5 – 108 MHZ), without tuning
° Overall efficiency better than 70%
° Hot-pluggable and broadband power amplifier modules Each module features switching mode power supply to control and stabilize power supply voltage
° Each amplifier module provides Automatic Power Conrol
° Suitable for mono & stereo broadcast operation
° Protection against high VSWR, overdrive, overcurrent and overtemperature
° Compliance to IEC safety standards
° Entire transmitter can be switched off through an emergency button
° High redundancy guaranteed by 3 power modules of 2.2 kW RF power
° All measurement and working parameters are displayed on front panel
° Remotely controllable by telemetry system
° The transmitter include an integrated system for automatic and manual switching between two exciters
° In Automatic mode the changeover is activated when active power of exciter falls below 3d

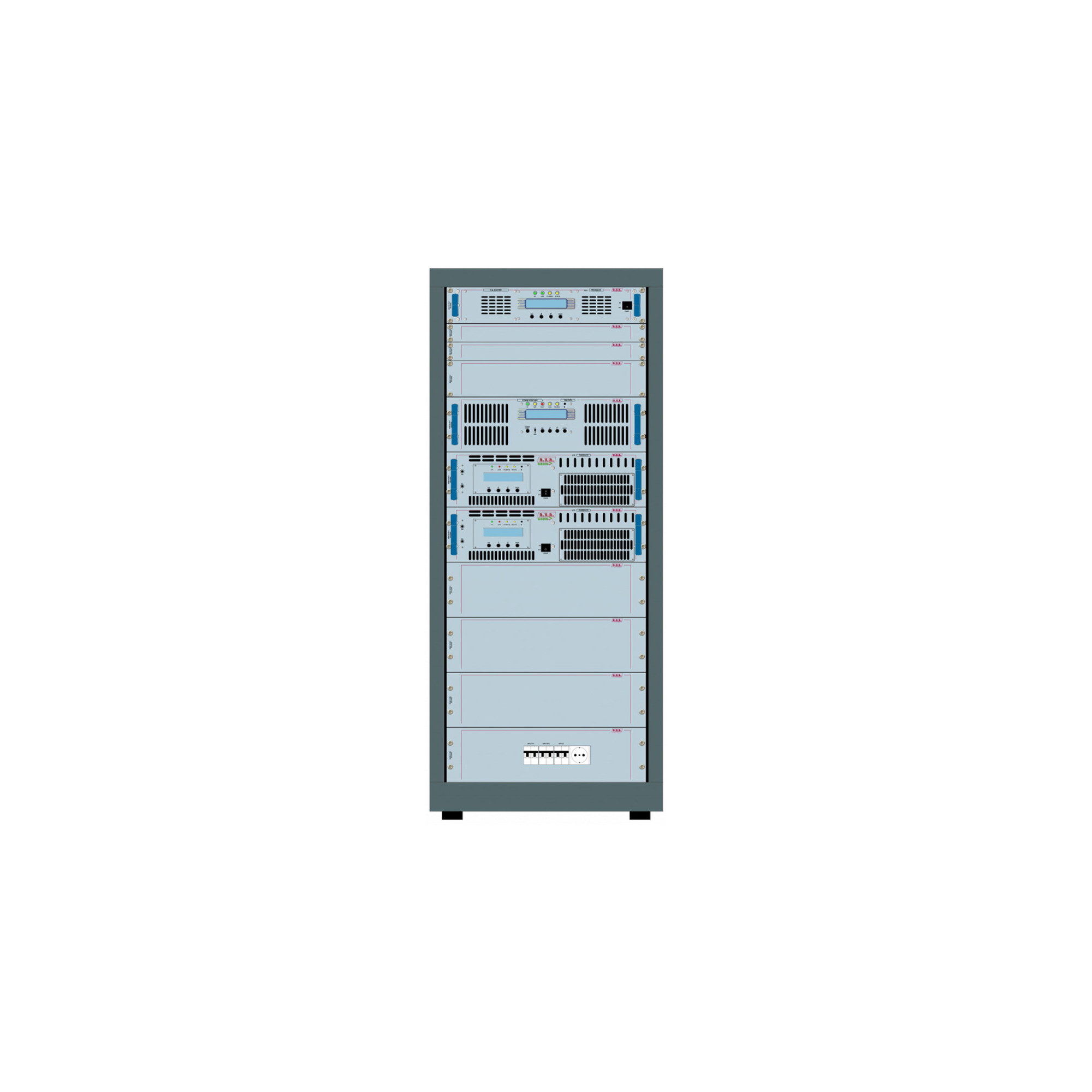

NOTE: The image of this layout is purely demonstrative and may change without notice. The configuration is only referred to installed equipment; rack, cover panels and all others accessories are to be defined at order.

General
RF Output Power : 5,5 kW
Frequency Range : 87,5 – 108 MHz
Frequency Stability : > 1 ppm
Frequency programmability Broadband : 87,5 - 108
Nominal Frequency Deviation : ±75 KHz (peak)
Maximum Frequency Deviation : ±150 KHz (peak)
Class of Emission : 180KF8E Direct to Channel
Modulation Mode : Mono, Stereo, Multiplex, SCA, RDS, Aux
Stereo transmissions : Acc. To ITU-R / Rec. 450 (Pilot tone)
RF Output Impedance : 50 ohm, Unbalanced
RF Output Connector : 7/8 - 1 + 5/8 on request ”EIA Flange
VSWR : 1.4:1 with automatic fold-back at higher VSWR
Pre-emphasis Mode : 0/50 (CCIR) µs,75 (FCC) µs
Asynchronous AM S/N Ratio : Typically >70dB
Synchronous AM S/N Ratio : Typically > 55dB
Harmonics suppression and Spurious : Typically < 85dB
Overall efficiency : Typically > 70%
RF Harmonics : Exceeds ETSI/CCIR/FCC requirements
RF Spurious : Exceeds ETSI/CCIR/FCC requirements
Analogue Input level : {+75 Khz (peak) deviation } -12,5 dBu - +12,5 dBu (adjustable)
Digital Input level : {+75 Khz (peak) deviation } -20,0 dBFS – 0 dBFS (adjustable)

Mono Operation
S/N ratio : Typically > 83dB
Total Harmonic Distortion + Noise : Typically < 0,03%
Inter Modulation Distortion SMPTE : Typically < 0,02%
Frequency Response : Typically ±0,2dB
Audio Input Impedance : 600 ohm or 10 kohm

MPX Operation
Composite S/N ratio : Typically > 80dB
Total Harmonic Distortion + Noise : Typically < 0,05%
Inter Modulation Distortion : Typically < 0,05%
Frequency Response : Typically ±0,2dB
Audio Input Impedance : 10 kohm

Stereo Operation
Stereo FM S/N Ratio : Typically > 83dB
Total Harmonic Distortion + Noise (L or R) : Typically < 0,02%
Inter Modulation Distortion SMPTE (L or R) : Typically < 0,02%
Frequency response (L or R) : Typically -0,2dB
Linear Cross Talk : Typically > 50dB
Non-linear Cross Talk : Typically > 50dB
Stereo Separation (Sine Wave) : Typically > 70dB
Audio Input Impedance : 600 ohm or 10 kohm
Digital Input Impedance : 110 ohm

Power Requirement
AC Power Supply: 230 Volt
Consumption: 6950W
Connector: VDE Iec standard

Weight - Dimensions
Dimensions (L x H x W): 6785x1970x1000 mm
Weight: 345 Kg
Acoustic noise: < 75 Dba
