FFC10-C - TELECFE

TYPICAL SPECIFICATIONS

Impedance : 50 ohm
Frequency Range : 87.5-108 MHz
VSWR ± 150 KHz : 1.1:1 max
Insertion Loss : 0.15 dB
Return Loss ± 150 KHz : -26 dB
Rejection per customer’s requirements - (Typical ± 1MHz it’s even to –14dB)
Connectors : 1+5/8” Input – Output (Option 3+1/8” )
Max Power : 10 KW
Working Temperature : -20°C ÷ +50°C
Colour : Enamel Gray Ral 7001
Materials : Aluminium, Brass, Copper, PTFE, Stainless Steel,
Silvering : (min 12µm thickness)

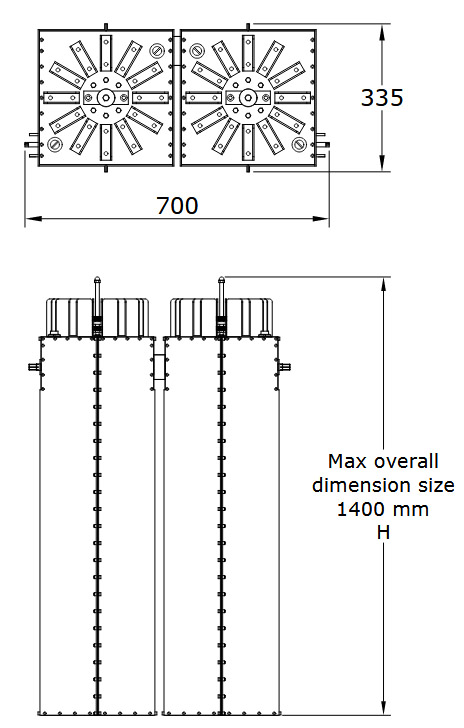

Dimensions : 1400(Max size)×700×335 mm (55.1(Max size)×27.5×13.2 inch) (H×L×W)
Net Weight : 46 Kg (double cavity)
