CV355-27X-ND3 - MarshallEAN  801813194029

Micro POV & Webcam > POV Cameras
EAN:801813194029
₦ 3.553.318,49
VAT Included
Adcom - Marshall
New
Available in 11 days

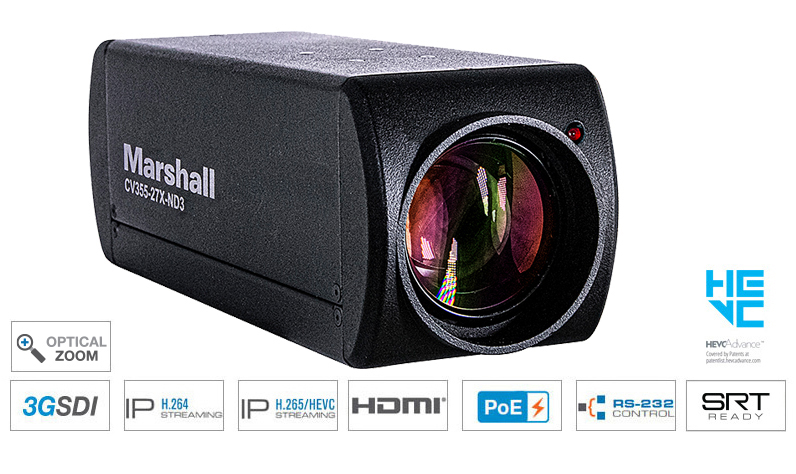

Marshall POV Camera FHD60 27x with NDI® (NDI HX2, NDI HX3) & 3GSDI

The CV355-27X-ND3 27X optical zoom NDI® (NDI HX2, NDI HX3) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp FHD video up to 1920x1080 at 60fps with support for all FHD formats.
Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

27X Optical Zoom
The 27X optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60° all the way out to 3.2° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.

NDI® (NDI HX2, NDI HX3) Workflow
keep your productions looking great NDI® preserves visual quality, frame accuracy, and source synchronization.
NDI® also opens up a wide range of NDI® Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI® workflows.

Low-light Sensitivity
The CV355-27X-ND3 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

NDI® Network
Ideal for use in NDI® networked and A/V installations, the CV355-27X-NDI offers the convenience of NDI® HX2|HX3, 3G/HDSDI and HDMI simultaneous outputs with stereo audio embedding.
Sensor: IMX317
Optical Zoom: 27x
Digital Zoom: 12x
Angle of view (H): 60°
Vertical Viewing Angle: 35°
Diagonal Viewing Angle: 68°
Aperture: F1.66~F4.98
Focal Length: f=5.56mm~150.29mm
Focus Distance: Wide:1m ~ infinity / Tele:1.5m ~ infinity
MTF:
Wide: center 1100/corner 900
Tele: center 1100/corner 800
Field of View:
Wide Horizontal viewing angle=60° (+/-5%)
Tele Horizontal viewing angle=3.2° (+/-5%)
Minimum Environmental illumination: 10 lux

Camera
Stream: Dual Stream (Main/Sub) / Webpage
Streaming Protocol: RTSP / RTMP / RTMPS / SRT / NDI(HX2/HX3)
Video Compression: HEVC (H.265) / AVC (H.264) / MJPEG
Audio Compression: G.711 / AAC
Preset: 256
Focus System: Auto/ One-Push AF / Manual
Electronic shutter: 1/1 to 1/10000 sec
Exposure Control: Auto / Shutter Pri / Iris Pri / Manual
Gain Control:: Auto, Manual
White Balance: Auto, Manual R/B Gain

Output Resolution
HDMI:
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
1080i : 60 / 59.94 / 50 fps
720p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
3G-SDI:
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
1080i : 60 / 59.94 / 50 fps
720p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
Stream
PTZ view
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
1080i : 60 / 59.94 / 50 fps
720p : 60 / 59.94 / 50 / 30 / 29.97 / 25 fps
360p : 30 / 29.97 / 25 fps
Webpage :
PTZ: MJPEG 360p

Interface
Line In: x1 , 3.5mm phone jack
Line Out: x1 , 3.5mm phone jack
Audio Output: HDMI / 3G-SDI / RTSP / RTMP / SRT
Audio Type: Stereo, Unbalanced
Audio Compression Format: AAC
HDMI: x1
Audio Output: Yes
HDMI Color Format: RGB / YUV422
3G-SDI: x1
Audio Output: Yes
Serial: RS232
RS232 In: RS232 In , Mini-Din x1
RS232 Out: RS232 Out , Mini-Din x1

Network
Ethernet RJ45 Port: x1 , 1Gbps
Number of clients (connection): RTSP 1080P60 *5
Network Protocol: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP

Camera control
Serial Control: RS-232 In x1 , RS-232 Out x1
Protocol: VISCA
Baud Rate: 9600 / 38400
Network:
- Webpage
- HTTP CGI
- HTTP API
- Onvif Profile S
- VISCA over IP

General
Tally Light: Yes, Red
Power Supply:
POE , IEEE 802.3af
DC 12V/3A , EIAJ Type 4
Power consumption: PoE : less than/equal to 10.5W , DC : less than/equal to 9W
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -20 to 60 °C
1x CV355-27X-ND3
