CR-N400 Auto Tracking Full - B - CanonEAN 8714574696843

PTZ cameras > 1/2" Sensor PTZ Indoor

EAN:8714574696843

₦ 9.422.391,18
VAT Included

Adcom - Canon

New

Available in 19 days

QUOTE

BUY

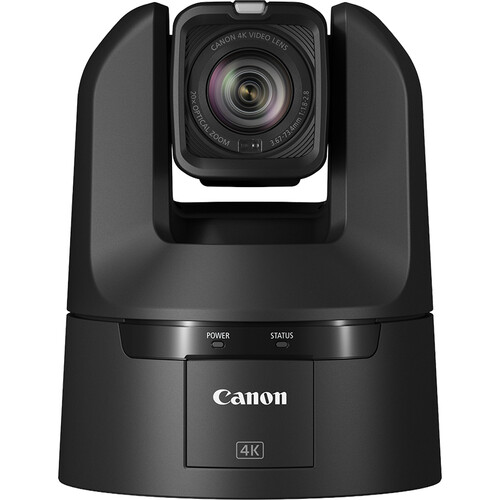

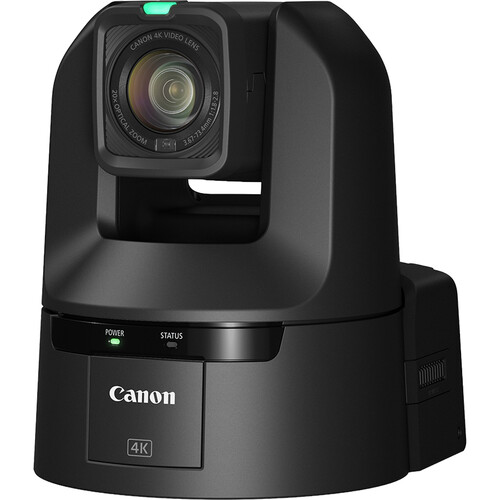

Canon 4K60P1 HDR PTZ Camera with up to 40x zoom in Full HD 12G-SDI, 1/2.3" Single-plate CMOS with FULL Auto Tracking - Black

Capture live productions with stunning 4K60P1 HDR imagery and zoom in up to 40x in Full HD - plus auto track subjects smoothly and integrate seamlessly with 12G-SDI, Time Code, Genlock and Dual XLR.

Shoot in studding 4K60P
Deliver breathtaking 4K60P1 video and enjoy ultra-sharp detail with smooth motion, making fast action events, live sports, and cinematic scenes look lifelike and immersive.

Capture every detail with HDR imagery
Reveal every highlight and shadow with HDR imaging thanks to the DIGIC DV7 processor that ensures sharp clarity, vivid contrast, and lifelike colour, no matter how challenging the lighting conditions.

Connect like a pro
Integrate seamlessly with 12G-SDI, Time Code, Genlock, and Dual XLR inputs.
Built for professional workflows, it ensures fast setup, reliable performance, and total studio compatibility.

Zoom further than ever
Bring the action closer with the lineup's longest 40x Advanced Zoom in Full HD.
Perfect for arenas, stadiums, and auditoriums, it captures crystal-clear shots even from the furthest seats.

Track every move automatically
Rely on advanced Auto tracking with face and head detection, precision motion tracking, and smooth pan/tilt movements and enhanced pan/tilt drive unit to keep every subject framed and in focus - without a camera operator.

Match colours instantly
Achieve consistent, broadcast-ready colours with ease.
The enhanced Camera Colour Matching Application quickly aligns the CR-N400 with your existing cameras for consistent, professional results.

Camera
Image Sensor: Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels: approx. 8.29 megapixels (3840 x 2160 at 23.98 / 25 / 29.97Hz) approx. 7.88 megapixels (3744 x 2104 at 50 / 59.94Hz)
Lens: f=3.67 -73.4 mm, F/1.8 -2.8, 20x optical zoom, 8-bladed iris diaphragm
Optical zoom: 20x optical zoom (40x with advanced zoom)
Digital zoom: 20x digital zoom
Focal Length: 3.67 -73.4 mm, f/1.8 -2.8,35mm equivalent focal length: Approx. 30.0 (W) -616 mm (T) (50 / 59.94Hz) Approx. 29.3 (W) -601 mm (T) (23.98 / 25 / 29.97Hz)
Angle of View: 59.94/50.00 Hz frame frequency:Horizontal: 63.3°(W) -3.5°(T)Vertical: 38.9°(W) -2.0°(T)29.97/25.00/23.98 Hz frame frequency:Horizontal: 65.6°(W) -3.6°(T)Vertical: 39.8°(W) -2.0°(T)
Shutter Speed: 1/3 -1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris: Manual/Automatic aperture
Gain: 0.0 dB -36 dB
ND Filter: Built-in (Off, 1/2, 1/4, 1/8), motor operated
White Balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K*),color temperature setting (2,000 K -15,000 K), Manual
Focus: Focus mode: Manual, Continuous AF, Face / Eye AF, TrackingAF type: Hybrid AF, Contrast AF
Minimum focusing distance: 1 cm at wide end, 60 cm across entire zooming range
Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, PQ, HLG
Pan and Tilt: Pan operation range: Horizontal ±170°Pan operation speed: 0.1°-100°/sec. (Maximum speed at preset: 200.00°/sec.)Tilt operation range: Vertical -30°-+100°Tilt operation speed: 0.1°-100°/sec. (Maximum speed at preset: 180.00°/sec.)
Dimensions: Approx. 176 x 220 x 194 mm (excluding protrusions)
Weight: Approx. 3.1 kg (6.8 lb.) (body only)

Interface
Communication Control: LAN, Wi-Fi, Serial, IR
Network Terminal: LAN x 1, RJ45, 1000Base-T
12G-SDI OUT Terminal: BNC jack (output only) x 1, 0.8 Vp-p/75 O,SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliantEmbedded audio, Time code (VITC/LTC)
6G-SDI OUT Terminal: No
3G-SDI OUT Terminal: BNC jack (output only) x 1, 0.8 Vp-p/75 O, unbalancedSMPTE 424, SMPTE 425, SMPTE ST 299-2 compliantEmbedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal: BNC jack (also serves as the SYNC OUT terminal)
Time Code Terminal: BNC jack (for both input/output)
HDMI Out Terminal: HDMI connector (Type A), both video and audio are output only
RS-422 Terminal: RJ45 connector x 1
Terminal: Sensitivity (LINE): +4 dBu(manual volume center, -18 dB full scale)Supply Voltage: 48 V DC (bias resistance: 6.8 kO) 3.5 mm stereo mini-jack (unbalanced, supports plug-in power)
MIC Terminal: Sensitivity (MIC): -72 dBu(manual volume center, -18 dB full scale)Sensitivity (LINE): -12 dBV(manual volume center, -18 dB full scale)
USB Terminal: Supply Voltage: 2.4 V DC (bias resistance: 2.2 kO) Type-C (USB 3.0) x 1
