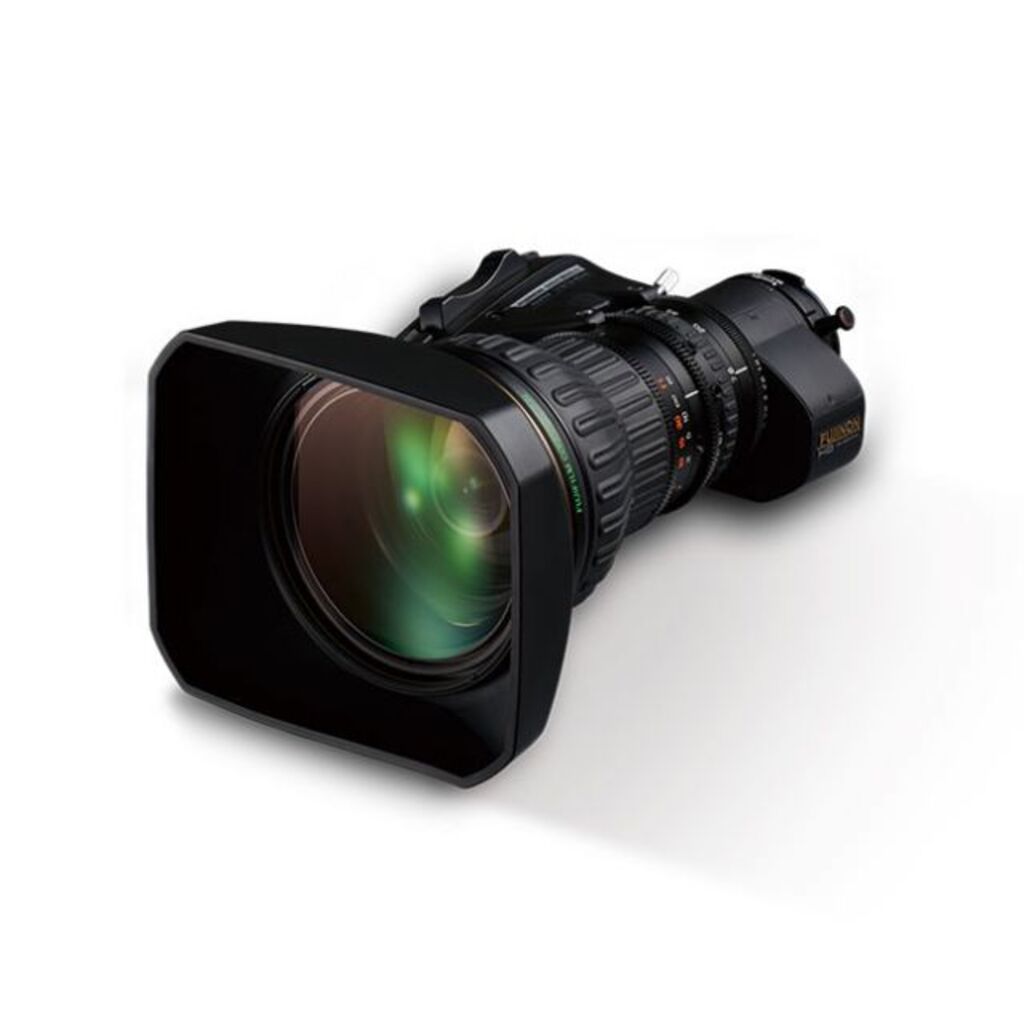

Fujinon Zoom lens High Definition 2/3" 22X Digi Power Full servo.
Fujinon ZA22x7.6BRD-S10 2/3 Select Series Telephoto Zoom Lens
High Power Zoom Ratio 22x in ENG Style lens
Outstanding HD High Optical Performance
Equipped New Ergonomic Digital Grip
16bit encoders device for virtual system
Model Name
ZA22x7.6BERM / BERD
Focal length
[1x] 7.6-167mm
[2x] 15.2-334mm
Zoom ratio: 22x
Extender: 2x
Maximum relative aperture: 1 : 1.8 (7.6-120mm) / 1 : 2.5 (167mm)
Minimum object distance from front lens: 0.8m
Object dimensions at M.O.D.: 16 : 9 Aspect ratio
[1x] 7.6mm 915 x 514mm
167mm 43 x 24mm
[2x] 15.2mm 473 x 266mm
334mm 22 x 12mm
Angular field of view: 16 : 9 Aspect ratio
[1x]7.6mm 64.5° x 39°
167mm 3.3° x 1.8°
[2x]15.2mm 35° x 20.1°
334mm 1.6° x 0.9°
Filter thread: M95 x 1 / M107 x 1 (Filter attaches to the lens hood.)
Approx. Size: 100 x 220.4mm
Approx Mass: 1.85kg (RM) / 1.92kg (RD) (without lens hood)
