Pro Convert IP to USB - MagewellEAN  6936572401652

Output
Max output UVC: 1080p60 YUY2/NV12. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 60/59.94/50/48/40/30/29.97/25/24/20/15
Max output UVC: 1080p30 MJPEG. Supported output formats include (Actual capture format will vary based on the host system USB interface, operating system and capture software.):
1920x1080p/1368x768p/1280x1024p/1280x720p/720x640p/720x480p/640x480p 30/29.97/25/24/20/15
UAC: 2-channel, 16-bit, 48KHz

Decoding
Decoding 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP at up to 1080p60
Decoding H.264 / H.265
Supports NDI 6

Configuration Management
Register with Control Hub
Remote control via WebUI and Control Hub
Web UI enables users to easily check and set the process-and-capture parameters, upgrade firmware and export info for troubleshooting
Provide HTTP APIs
Support USB NET

PTZ Control
Control PTZ cameras using protocols of NDI and Visca over UDP

Host Interface
USB 3.0 (5 Gbps) Type-C
5V/1A power supply
USB NCM

Network Connections

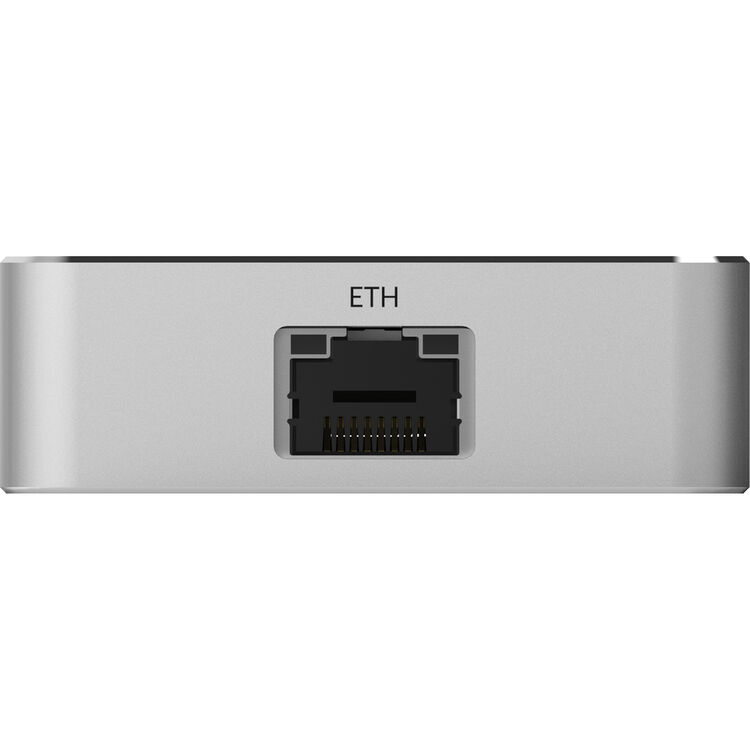

Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T

Recommended OS
Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
Linux x86, x64 & ARM architecture, with 2.6.35 and above
Mac OS X 10.9 and above
macOS 10.12 and above

LED Indicators
Status LED indicates:
Power supply: on/off

Form Factor
3.8622 in (L) x 2.2354 in (W) x 0.7087 in (H) (98.1 mm x 56.78 mm x 18 mm)

Power Consumption
5V max current: ~ 1A
Max power consumption: ~ 3.8W

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: -20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
