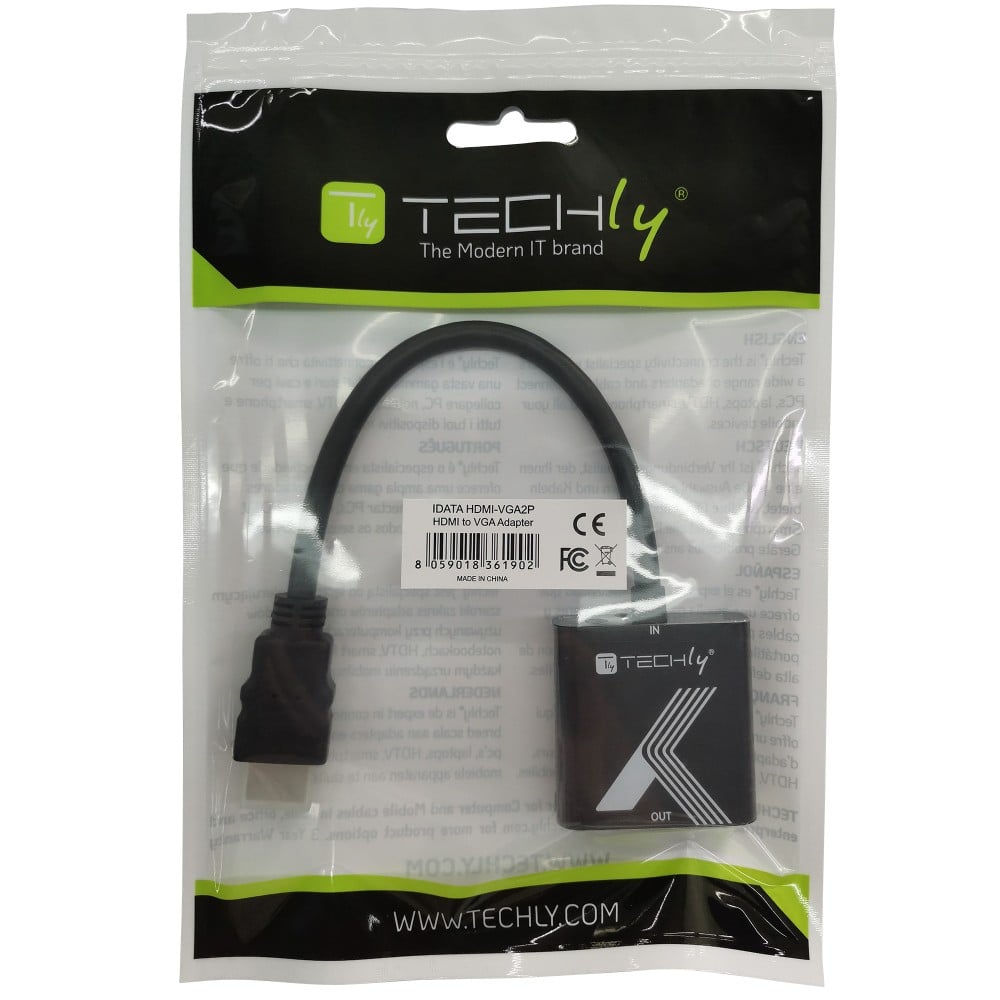

IDATA HDMI-VGA2P - Techly

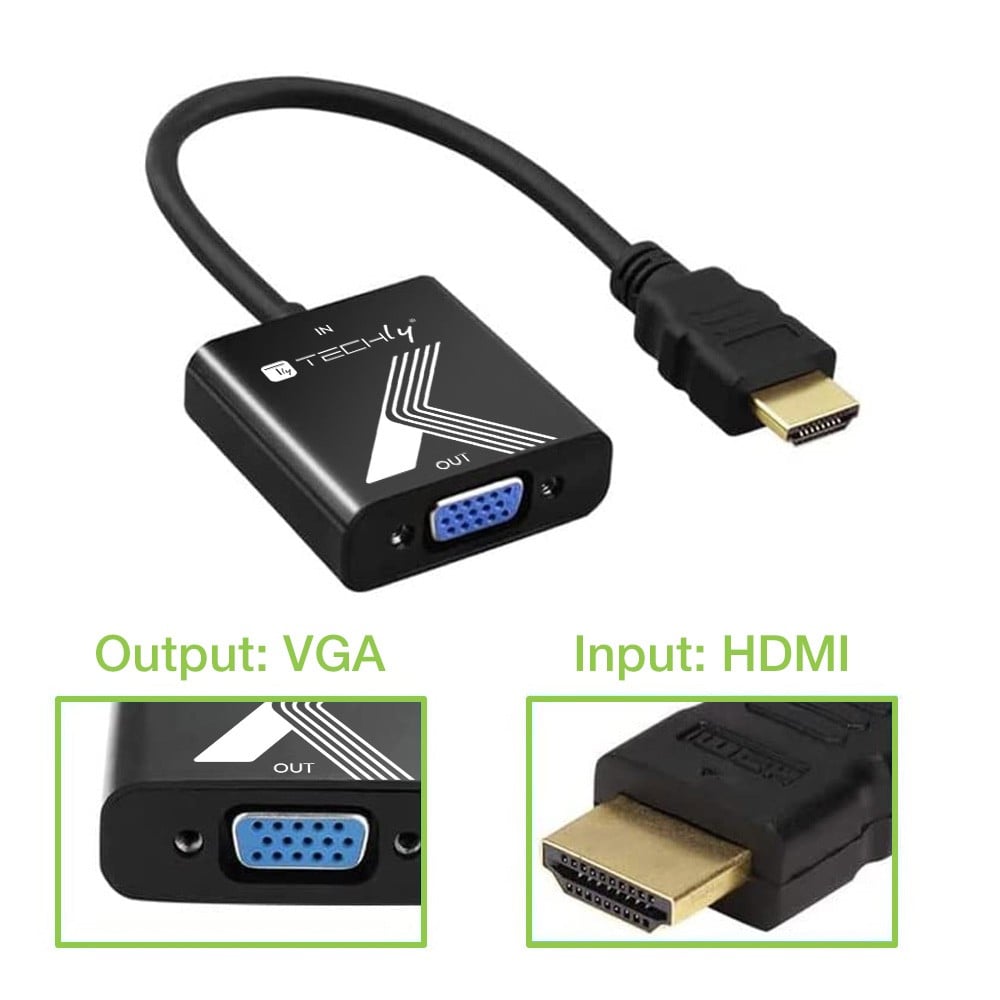

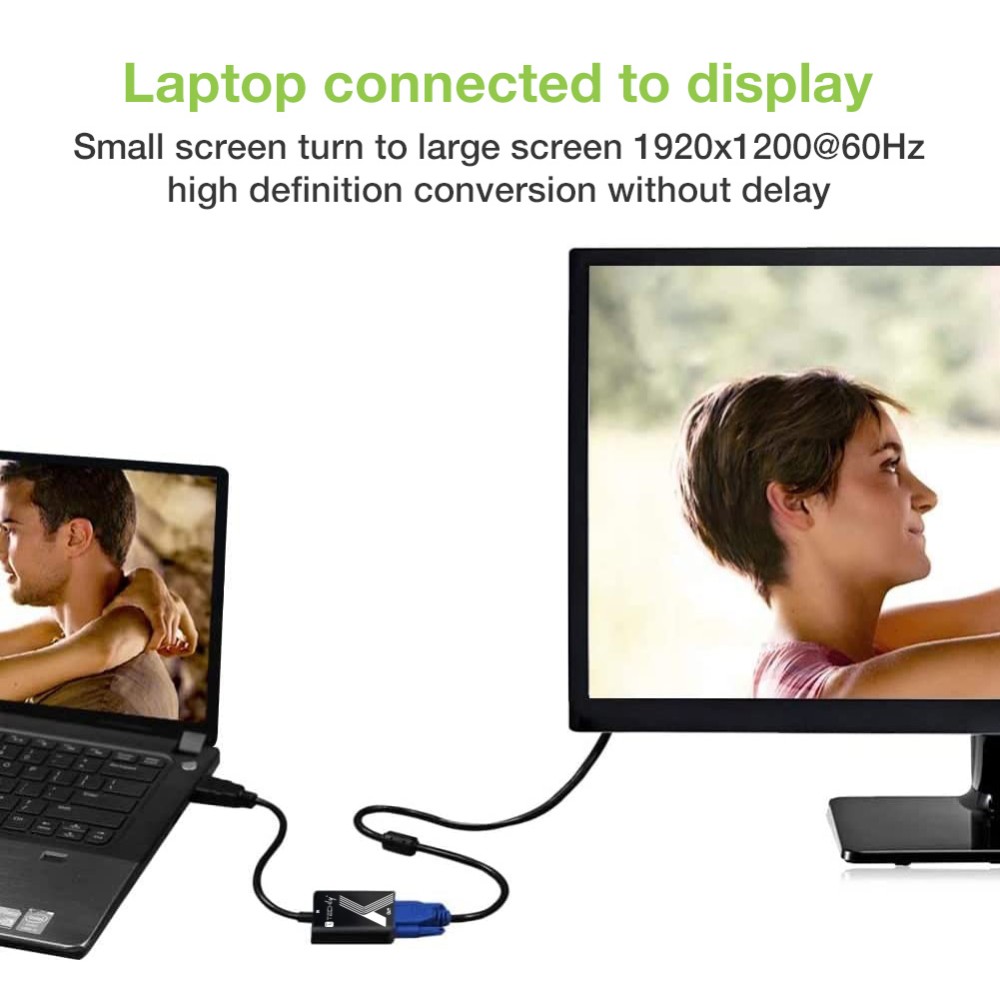

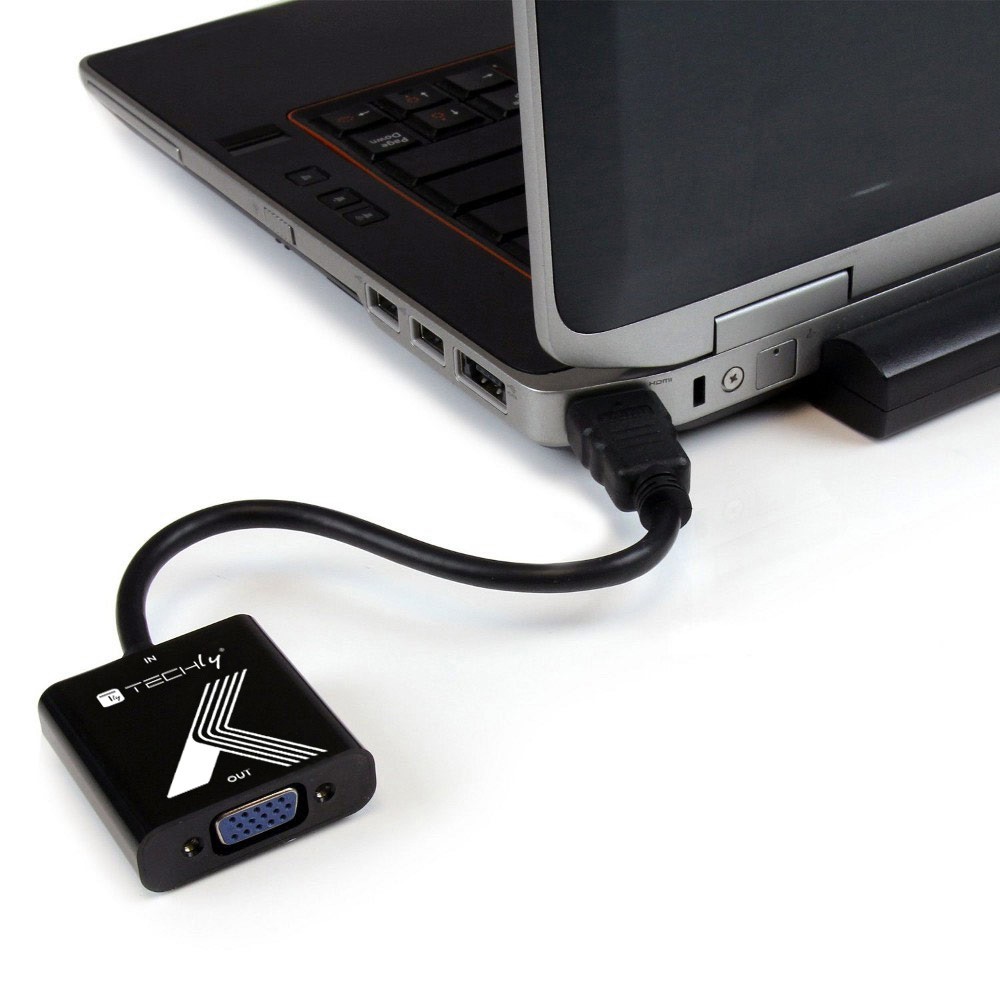

Adapter capable of converting HDMI signal to standard VGA signal. Get high definition images by watching movies or playing on traditional VGA monitors or projectors.

Features

Converts an HDMI digital signal to VGA analog video with 1920 x 1200 to 60 Hz maximum resolutions
Easy to use: installable in seconds, without the need for configurations
Supports triple 8-bit DAC
Compatible HDCP 1.4
Converts HDMI1.4b to VGA
Supports hot plug detection
Chipset AG6200

Specifications

Video signal input: 0.5-1.0 volts p-p
DDC signal input: 5 volts p-p (TTL)
Input Connection: HDMI To Male (19pin)
Outbound connection: VGA Female
HDMI input video format: 480p/576p/720p/1080p
VGA output video format: 1920 x 1200 to 60 Hz
Vertical frequency range: 50/60Hz
Linear PCM with sampling rate of 32 kHz, 44.1 kHz and 48 kHz

Physical information

Dimensions (LxHxP): 43 mm x 15 mm x 44 mm
HDMITM cable length: 150 ± 5 mm
Packaging in Polybag

General information

Operating temperature: from 0° to +70°C
Operating humidity: 10% to 85% RH (non-condensing)
Storage temperature: from -10° to +80°C
Storage humidity: 5% to 95% RH (non-condensing)
Consumption (Max) 2W

Certifications

CE
FCC
RoHS
WEEE
