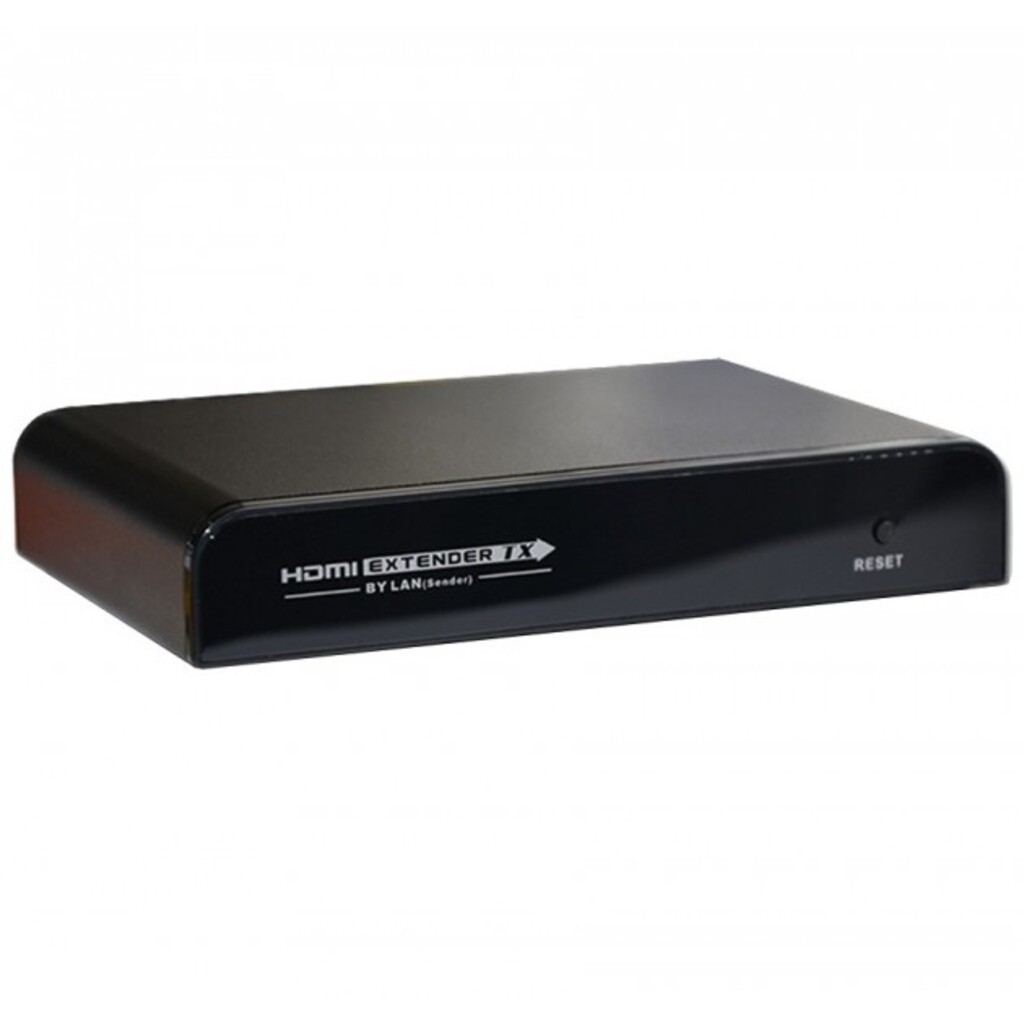

IDATA HDMI-MX373 - Techly

• Transmitter for Matrix Switch with HDMI Extender up to 120m via IR
• Provides a reliable transmission of HDMI cable network CAT5 / 6
• Enable the function of Signal Extender via LAN with support IGMP
• Supports cascade connection
• Supports TCP / IP
• Provides a good signal stability and reduces interference
• Widely applied in fields that require full HD, such as advertising campaigns, demonstrations of new products, CCTV systems, etc..

Features
• Network cable: UTP / STP Cat5e / 6
• Length of cable network between all terminals: = 80m CAT5, CAT5E = 100m, CAT 6 = 120m
• Switch Lan: function supports network management and IGMP / IGMP snooping. Support network bandwidth in lacale = 100m
• IR Remote Control: Support IR frequency signal 20-60KHZ
• Consumption: Shipping 3W, receive 3W
• Power supply: DC 5V / 1A (x2)
• Color: Black

Supported resolutions
• Resolutions Incoming: 480i / 480p @ 60Hz, 576i / 576p @ 50Hz, 720p / 1080i / 1080p (50Hz, 60Hz)
• Resolutions output: 480p @ 60Hz, 576p @ 50Hz, 720p / 1080p (50Hz, 60Hz)

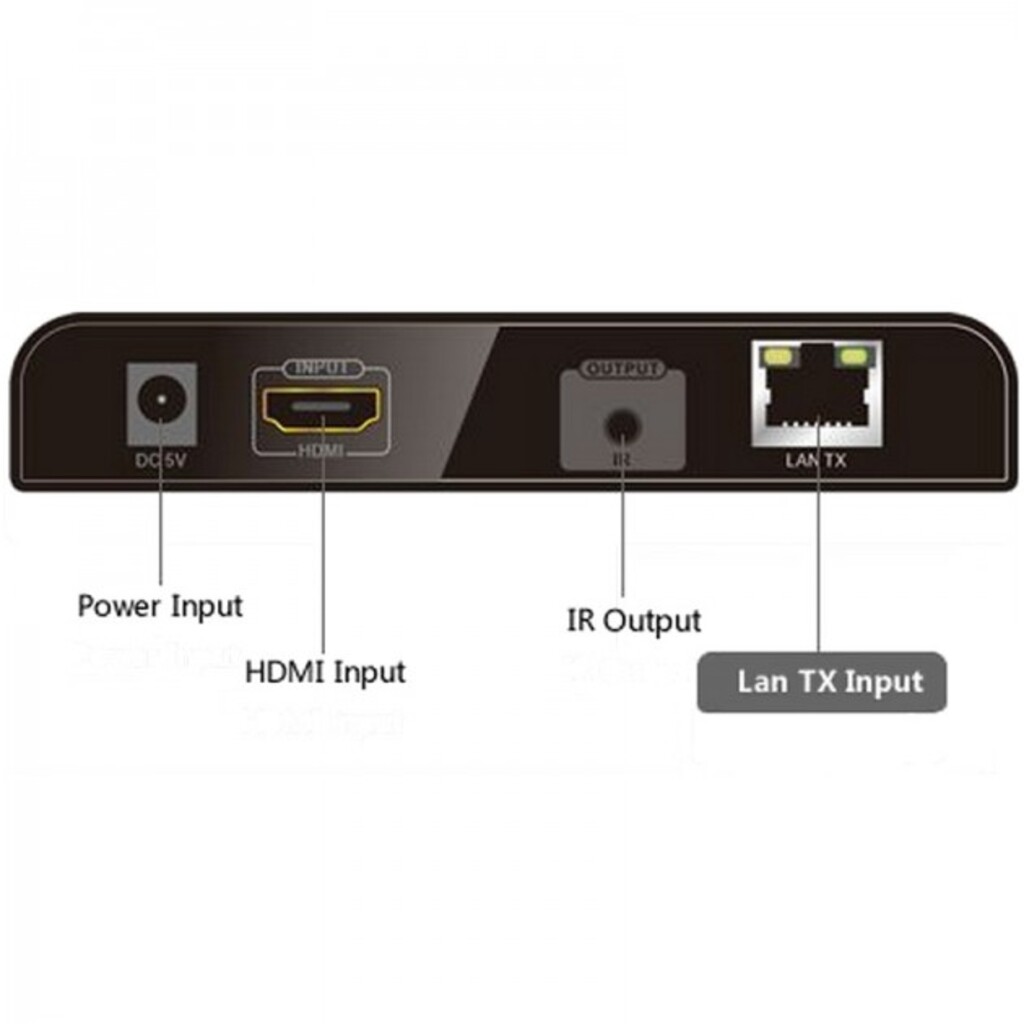

Installation Requirements
• Source HDMI (video card of the computer, DVD, PS3, etc.).
• Monitor or projector with HDMI port
• Network switch with IGMP snooping or IGMP
• Connection of network cable Cat. 5E / 6

Size
• Width 13 cm
• Depth 8.6 cm
• Height 2.5 cm

Certifications
• CE
• FCC
• RoHS
• WEEE

Package Contents
• LAN 1x HDMI Transmitter TX
• 1x extension cable IR blaster
• 1x User manual
• 1x Power Supply DC 5V / 1A
